API OIL CASING PIPE

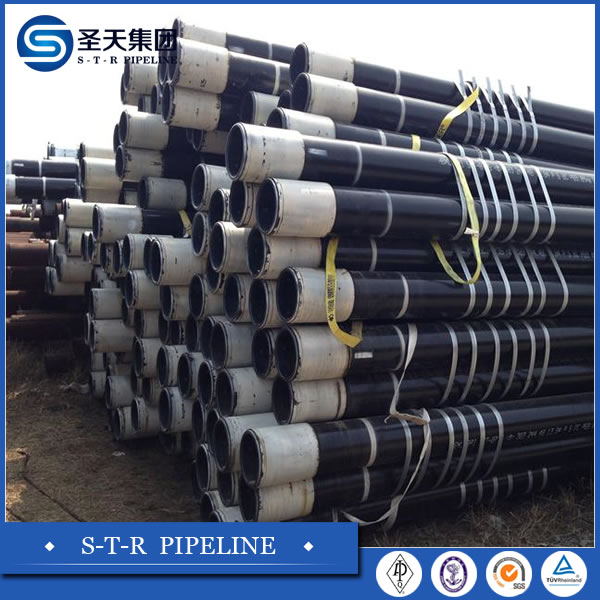

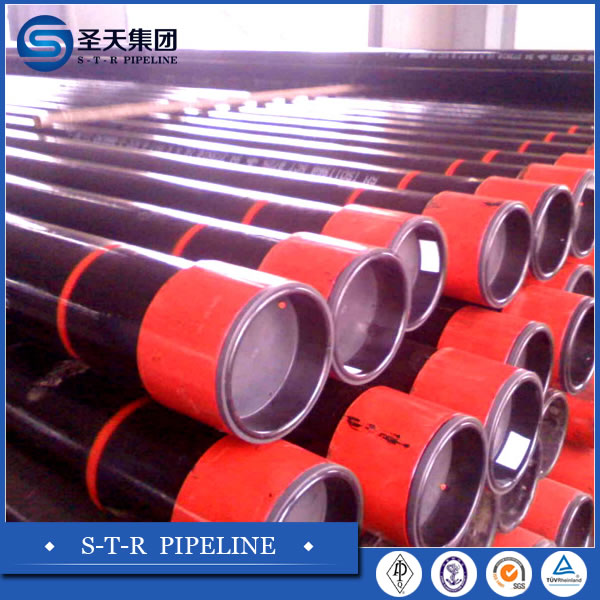

PIC-(API OIL CASING PIPE)
API OIL CASING PIPE
\\

API OIL CASING PIPE'S DETAILED DESCRIPTION IS AS THE FOLLOWING:


Technical  Parameters of Petroleum Bushing 石油套管技术参数
规格 sizes 外径 Outside Diameter 带螺纹和接箍理论重量 Norminal Linear mass T&C 壁厚 wall thickness T  端部加工形式 Type of End-finish
IN  mm INCH kg/m lb/ft mm in H40 J55  K55 M65 L80 C95 N80 1类 Q C90 T95 P110 Q125 DLP 80T DLP 110T DLP 125T DLP 110TT DLP 125TT
4 1/2 114.30 4.500 14.14 9.50 5.21 0.205 S S S - - - - - - - - - -
4 1/2 114.30 4.500 15.63 10.50 5.69 0.244 - SB SB - - - - - - - - - -
4 1/2 114.30 4.500 17.26 11.60 6.35 0.250 - SLB LB LB LB LB LB - LB LB - LB -
4 1/2 114.30 4.500 20.09 13.50 7.37 0.290 - - LB LB LB LB LB - LB LB - LB -
4 1/2 114.30 4.500 22.47 15.10 8.56 0.337 - - - - - - LB LB LB LB LB LB LB
5    127.00 5.000 17.11 11.50 5.59 0.220 - S S - - - - - - - - - -
5    127.00 5.000 19.35 13.00 6.43 0.253 - SLB SLB - - - - - - - - - -
5    127.00 5.000 22.32 15.00 7.52 0.296 - SLB LB LB LB LB LB - LB LB LB LB LB
5    127.00 5.000 26.79 18.00 9.19 0.362 - - LB LB LB LB LB LB LB LB LB LB LB
5    127.00 5.000 31.85 21.40 11.10 0.437 - - LB LB LB LB LB LB LB LB - LB -
5    127.00 5.000 34.53 23.20 12.14 0.478 - - - LB LB LB LB LB LB LB LB LB LB
5    127.00 5.000 35.86 24.10 12.70 0.500 - - - LB LB LB LB LB LB LB - LB -
5 1/2 139.70 5.500 20.83 14.00 6.20 0.244 S S S - - - - - - - - - -
5 1/2 139.70 5.500 23.07 15.50 6.98 0.275 - SLB SLB - - - - - - - - - -
5 1/2 139.70 5.500 25.3 17.00 7.72 0.304 - SLB LB LB LB LB LB - LB LB - LB -
5 1/2 139.70 5.500 29.76 20.00 9.17 0.361 - - LB LB LB LB LB - LB LB LB LB LB
5 1/2 139.70 5.500 34.23 23.00 10.54 0.415 - - LB LB LB LB LB LB LB LB LB LB LB
6 5/8 168.28 6.625 29.76 20.00 7.32 0.288 S SLB SLB - - - - - - - - - -
6 5/8 168.28 6.625 35.72 24.00 8.94 0.352 - SLB LB LB LB LB LB - LB LB - LB -
6 5/8 168.28 6.625 41.67 28.00 10.59 0.417 - - LB LB LB LB LB LB LB LB LB LB LB
6 5/8 168.28 6.625 47.62 32.00 12.06 0.475 - - - LB LB LB LB LB LB LB LB LB LB
7    177.80 7.000 25.3 17.00 5.87 0.231 S - - - - - - - - - - - -
7    177.80 7.000 29.76 20.00 6.91 0.272 S S S - - - - - - - - - -
7    177.80 7.000 34.23 23.00 8.05 0.317 - SLB LB LB LB LB - - LB LB - LB -
7    177.80 7.000 38.69 26.00 9.19 0.362 - SLB LB LB LB LB LB - LB LB - LB -
7    177.80 7.000 43.16 29.00 10.36 0.408 - - LB LB LB LB LB - LB LB - LB -
7    177.80 7.000 47.62 32.00 11.51 0.453 - - LB LB LB LB LB - LB LB - LB -
7    177.80 7.000 52.09 35.00 12.65 0.498 - - - LB LB LB LB LB LB LB LB LB LB
7    177.80 7.000 56.55 38.00 13.72 0.540 - - - LB LB LB LB LB LB LB LB LB LB
7 5/8 193.68 7.625 35.72 24.00 7.62 0.300 S - - - - - - - - - - - -
7 5/8 193.68 7.625 39.29 26.40 8.33 0.328 - SLB SLB LB LB LB - - LB LB - LB -
7 5/8 193.68 7.625 44.2 29.70 9.52 0.375 - - LB LB LB LB LB - LB LB - LB -
7 5/8 193.68 7.625 50.15 33.70 10.92 0.430 - - LB LB LB LB LB - LB LB LB LB LB
7 5/8 193.68 7.625 58.04 39.00 12.70 0.500 - - - LB LB LB LB LB LB LB LB LB LB
7 5/8 193.68 7.625 63.69 42.80 14.27 0.562 - - - LB LB LB LB LB LB LB - LB -
7 5/8 193.68 7.625 67.41 45.30 15.11 0.595 - - - LB LB LB LB LB LB LB LB LB LB
7 5/8 193.68 7.625 70.09 47.10 15.88 0.625 - - - LB LB LB LB LB LB LB - LB -
8 5/8 219.08 8.625 35.72 24.00 6.71 0.264 - S S - - - - - - - - - -
8 5/8 219.08 8.625 41.67 28.00 7.72 0.304 S - S - - - - - - - - - -
8 5/8 219.08 8.625 47.62 32.00 8.94 0.352 S SLB SLB - - - - - - - - - -
8 5/8 219.08 8.625 53.57 36.00 10.16 0.400 - SLB SLB LB LB LB - - LB LB - LB -
8 5/8 219.08 8.625 59.53 40.00 11.43 0.450 - - LB LB LB LB LB - LB LB - LB -
8 5/8 219.08 8.625 65.48 44.00 12.70 0.500 - - - LB LB LB LB - LB LB LB LB LB
8 5/8 219.08 8.625 72.92 49.00 14.15 0.557 - - - LB LB LB LB LB LB LB LB LB LB
9 5/8 244.48 9.625 48.07 32.30 7.92 0.312 S - - - - - - - - - - - -
9 5/8 244.48 9.625 53.57 36.00 8.94 0.352 S SLB SLB - - - - - - - - - -
9 5/8 244.48 9.625 59.53 40.00 10.03 0.395 - SLB SLB LB LB LB - - LB LB - LB -
9 5/8 244.48 9.625 64.73 43.50 11.05 0.435 - - LB LB LB LB LB - LB LB LB LB LB
9 5/8 244.48 9.625 69.94 47.00 11.99 0.472 - - LB LB LB LB LB LB LB LB LB LB LB
9 5/8 244.48 9.625 79.62 53.50 13.84 0.545 - - - LB LB LB LB LB LB LB LB LB LB
9 5/8 244.48 9.625 86.91 58.40 15.11 0.595 - - - LB LB LB LB LB LB LB LB LB LB
10 3/4 273.05 10.750 48.73 32.75 7.09 0.279 S - - - - - - - - - - - -
10 3/4 273.05 10.750 60.27 40.50 8.89 0.350 S SB SB - - - - - - - - - -
10 3/4 273.05 10.750 67.71 45.50 10.16 0.400 - SB SB - - - - - - - - - -
10 3/4 273.05 10.750 75.9 51.00 11.43 0.450 - SB SB SB SB SB SB - - - - - -
10 3/4 273.05 10.750 82.59 55.50 12.57 0.495 - - SB SB SB SB SB - - - - - -
10 3/4 273.05 10.750 90.33 60.70 13.84 0.545 - - - - - SB SB SB - - - - -
10 3/4 273.05 10.750 97.77 65.70 15.11 0.595 - - - - - SB SB SB - - - - -
11 3/4 298.45 11.750 62.5 42.00 8.46 0.333 S - - - - - - - - - - - -
11 3/4 298.45 11.750 69.94 47.00 9.53 0.375 - SB SB - - - - - - - - - -
11 3/4 298.45 11.750 80.36 54.00 11.05 0.435 - SB SB - - - - - - - - - -
11 3/4 298.45 11.750 89.29 60.00 12.42 0.489 - SB SB SB SB SB SB SB - - - - -
13 3/8 339.72 13.375 71.43 48.00 8.38 0.330 S - - - - - - - - - - - -
13 3/8 339.72 13.375 81.1 54.50 9.65 0.380 - SB SB - - - - - - - - - -
13 3/8 339.72 13.375 90.78 61.00 10.92 0.430 - SB SB - - - - - - - - - -
13 3/8 339.72 13.375 101.2 68.00 12.19 0.480 - SB SB SB SB SB SB - - - - - -
13 3/8 339.72 13.375 107.2 72.00 13.06 0.514 - - - SB SB SB SB SB - - - - -
16    406.40 16.000 93.67 65.00 9.53 0.375 S - - - - - - - - - - - -
16    406.40 16.000 111.6 75.00 11.13 0.438 - SB SB - - - - - - - - - -
16    406.40 16.000 125 84.00 12.57 0.495 - SB SB - - - - - - - - - -
18 5/8 473.08 18.625 130.2 87.50 11.05 0.435 S SB SB - - - - - - - - - -
20 508.00 20.000 139.9 94.00 11.13 0.438 SL SLB SLB - - - - - - - - - -
20    508.00 20.000 158.5 106.50 12.70 0.500 - SLB SLB - - - - - - - - - -
20    508.00 20.000 197.9 133.00 16.13 0.635 - SLB - - - - - - - - - - -
