Location:HOME > PRODUCTS > OIL CASING PIPE > P110 OIL CASING PIPE

P110 OIL CASING PIPE

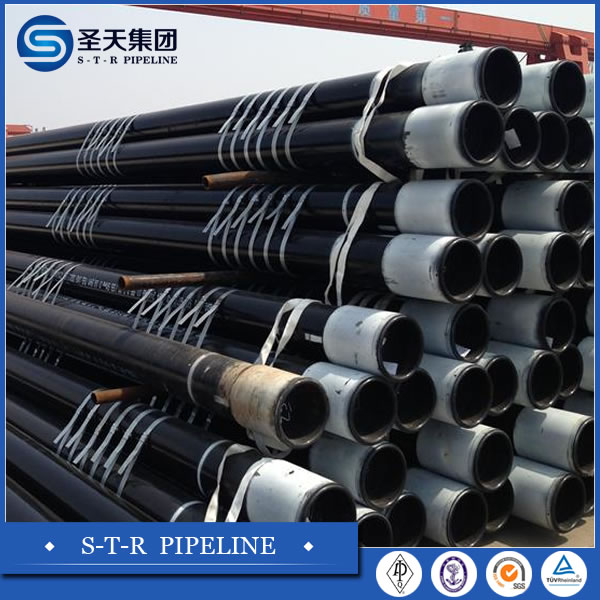

PIC-(P110 OIL CASING PIPE)
P110 OIL CASING PIPE

\

P110 OIL CASING PIPE DETAILED DESCRIPTION AS THE FOLLOWING:


Technical  Parameters of Petroleum Bushing 石油套管技术参数
规格 sizes 外径 Outside Diameter 带螺纹和接箍理论重量 Norminal Linear mass T&C 壁厚 wall thickness T  端部加工形式 Type of End-finish
IN  mm INCH kg/m lb/ft mm in H40 M65 L80 C95 N80 1类 Q C90 T95 P110
4 1/2 114.30 4.500 14.1 9.50 5.21 0.205 S S - - - -
4 1/2 114.30 4.500 15.6 10.50 5.69 0.244 - SB - - - -
4 1/2 114.30 4.500 17.3 11.60 6.35 0.250 - LB LB LB LB LB
4 1/2 114.30 4.500 20.1 13.50 7.37 0.290 - LB LB LB LB LB
4 1/2 114.30 4.500 22.5 15.10 8.56 0.337 - - - - - LB
5    127.00 5.000 17.1 11.50 5.59 0.220 - S - - - -
5    127.00 5.000 19.4 13.00 6.43 0.253 - SLB - - - -
5    127.00 5.000 22.3 15.00 7.52 0.296 - LB LB LB LB LB
5    127.00 5.000 26.8 18.00 9.19 0.362 - LB LB LB LB LB
5    127.00 5.000 31.9 21.40 11.10 0.437 - LB LB LB LB LB
5    127.00 5.000 34.5 23.20 12.14 0.478 - - LB LB LB LB
5    127.00 5.000 35.9 24.10 12.70 0.500 - - LB LB LB LB
5 1/2 139.70 5.500 20.8 14.00 6.20 0.244 S S - - - -
5 1/2 139.70 5.500 23.1 15.50 6.98 0.275 - SLB - - - -
5 1/2 139.70 5.500 25.3 17.00 7.72 0.304 - LB LB LB LB LB
5 1/2 139.70 5.500 29.8 20.00 9.17 0.361 - LB LB LB LB LB
5 1/2 139.70 5.500 34.2 23.00 10.54 0.415 - LB LB LB LB LB
6 5/8 168.28 6.625 29.8 20.00 7.32 0.288 S SLB - - - -
6 5/8 168.28 6.625 35.7 24.00 8.94 0.352 - LB LB LB LB LB
6 5/8 168.28 6.625 41.7 28.00 10.59 0.417 - LB LB LB LB LB
6 5/8 168.28 6.625 47.6 32.00 12.06 0.475 - - LB LB LB LB
7    177.80 7.000 25.3 17.00 5.87 0.231 S - - - - -
7    177.80 7.000 29.8 20.00 6.91 0.272 S S - - - -
7    177.80 7.000 34.2 23.00 8.05 0.317 - LB LB LB LB -
7    177.80 7.000 38.7 26.00 9.19 0.362 - LB LB LB LB LB
7    177.80 7.000 43.2 29.00 10.36 0.408 - LB LB LB LB LB
7    177.80 7.000 47.6 32.00 11.51 0.453 - LB LB LB LB LB
7    177.80 7.000 52.1 35.00 12.65 0.498 - - LB LB LB LB
7    177.80 7.000 56.6 38.00 13.72 0.540 - - LB LB LB LB
7 5/8 193.68 7.625 35.7 24.00 7.62 0.300 S - - - - -
7 5/8 193.68 7.625 39.3 26.40 8.33 0.328 - SLB LB LB LB -
7 5/8 193.68 7.625 44.2 29.70 9.52 0.375 - LB LB LB LB LB
7 5/8 193.68 7.625 50.2 33.70 10.92 0.430 - LB LB LB LB LB
7 5/8 193.68 7.625 58 39.00 12.70 0.500 - - LB LB LB LB
7 5/8 193.68 7.625 63.7 42.80 14.27 0.562 - - LB LB LB LB
7 5/8 193.68 7.625 67.4 45.30 15.11 0.595 - - LB LB LB LB
7 5/8 193.68 7.625 70.1 47.10 15.88 0.625 - - LB LB LB LB
8 5/8 219.08 8.625 35.7 24.00 6.71 0.264 - S - - - -
8 5/8 219.08 8.625 41.7 28.00 7.72 0.304 S S - - - -
8 5/8 219.08 8.625 47.6 32.00 8.94 0.352 S SLB - - - -
8 5/8 219.08 8.625 53.6 36.00 10.16 0.400 - SLB LB LB LB -
8 5/8 219.08 8.625 59.5 40.00 11.43 0.450 - LB LB LB LB LB
8 5/8 219.08 8.625 65.5 44.00 12.70 0.500 - - LB LB LB LB
8 5/8 219.08 8.625 72.9 49.00 14.15 0.557 - - LB LB LB LB
9 5/8 244.48 9.625 48.1 32.30 7.92 0.312 S - - - - -
9 5/8 244.48 9.625 53.6 36.00 8.94 0.352 S SLB - - - -
9 5/8 244.48 9.625 59.5 40.00 10.03 0.395 - SLB LB LB LB -
9 5/8 244.48 9.625 64.7 43.50 11.05 0.435 - LB LB LB LB LB
9 5/8 244.48 9.625 69.9 47.00 11.99 0.472 - LB LB LB LB LB
9 5/8 244.48 9.625 79.6 53.50 13.84 0.545 - - LB LB LB LB
9 5/8 244.48 9.625 86.9 58.40 15.11 0.595 - - LB LB LB LB
10 3/4 273.05 10.750 48.7 32.75 7.09 0.279 S - - - - -
10 3/4 273.05 10.750 60.3 40.50 8.89 0.350 S SB - - - -
10 3/4 273.05 10.750 67.7 45.50 10.16 0.400 - SB - - - -
10 3/4 273.05 10.750 75.9 51.00 11.43 0.450 - SB SB SB SB SB
10 3/4 273.05 10.750 82.6 55.50 12.57 0.495 - SB SB SB SB SB
10 3/4 273.05 10.750 90.3 60.70 13.84 0.545 - - - - SB SB
10 3/4 273.05 10.750 97.8 65.70 15.11 0.595 - - - - SB SB
11 3/4 298.45 11.750 62.5 42.00 8.46 0.333 S - - - - -
11 3/4 298.45 11.750 69.9 47.00 9.53 0.375 - SB - - - -
11 3/4 298.45 11.750 80.4 54.00 11.05 0.435 - SB - - - -
11 3/4 298.45 11.750 89.3 60.00 12.42 0.489 - SB SB SB SB SB
13 3/8 339.72 13.375 71.4 48.00 8.38 0.330 S - - - - -
13 3/8 339.72 13.375 81.1 54.50 9.65 0.380 - SB - - - -
13 3/8 339.72 13.375 90.8 61.00 10.92 0.430 - SB - - - -
13 3/8 339.72 13.375 101 68.00
