J55 Casing pipe

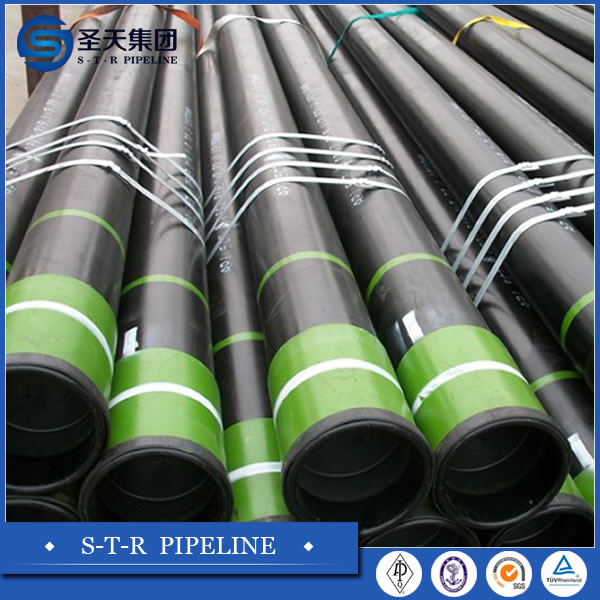

PIC-(J55 Casing pipe)
1) Grade: J55,K55,L80,N80Q,C90,T95,P110
2) Size: 4 1/2", 5", 5 1/2", 6 5/8", 7", 7 5/8", 9 5/8", 10 3/4", 13 3/8", 16", 18 5/8", 20"
3) Wall thickness: 6.35 - 12.70 mm
4) Thread type: STC, LTC, BTC
5) Length: R1,R2,R3
6) All our casings accord with API 5CT standard, and we have the right to use the API 5CT LOGO.
| Technical Parameters of Petroleum Bushing 石油套管技术参数 | |||||||
| 规格 sizes | 外径 Outside Diameter | 带螺纹和接箍理论重量 Norminal Linear mass T&C | 壁厚 wall thickness T | 端部加工形式 Type of End-finish | |||
| IN | mm | INCH | kg/m | lb/ft | mm | in | J55 K55 |
| 4 1/2 | 114.30 | 4.500 | 14.14 | 9.50 | 5.21 | 0.205 | S |
| 4 1/2 | 114.30 | 4.500 | 15.63 | 10.50 | 5.69 | 0.244 | SB |
| 4 1/2 | 114.30 | 4.500 | 17.26 | 11.60 | 6.35 | 0.250 | SLB |
| 4 1/2 | 114.30 | 4.500 | 20.09 | 13.50 | 7.37 | 0.290 | - |
| 4 1/2 | 114.30 | 4.500 | 22.47 | 15.10 | 8.56 | 0.337 | - |
| 5 | 127.00 | 5.000 | 17.11 | 11.50 | 5.59 | 0.220 | S |
| 5 | 127.00 | 5.000 | 19.35 | 13.00 | 6.43 | 0.253 | SLB |
| 5 | 127.00 | 5.000 | 22.32 | 15.00 | 7.52 | 0.296 | SLB |
| 5 | 127.00 | 5.000 | 26.79 | 18.00 | 9.19 | 0.362 | - |
| 5 | 127.00 | 5.000 | 31.85 | 21.40 | 11.10 | 0.437 | - |
| 5 | 127.00 | 5.000 | 34.53 | 23.20 | 12.14 | 0.478 | - |
| 5 | 127.00 | 5.000 | 35.86 | 24.10 | 12.70 | 0.500 | - |
| 5 1/2 | 139.70 | 5.500 | 20.83 | 14.00 | 6.20 | 0.244 | S |
| 5 1/2 | 139.70 | 5.500 | 23.07 | 15.50 | 6.98 | 0.275 | SLB |
| 5 1/2 | 139.70 | 5.500 | 25.3 | 17.00 | 7.72 | 0.304 | SLB |
| 5 1/2 | 139.70 | 5.500 | 29.76 | 20.00 | 9.17 | 0.361 | - |
| 5 1/2 | 139.70 | 5.500 | 34.23 | 23.00 | 10.54 | 0.415 | - |
| 6 5/8 | 168.28 | 6.625 | 29.76 | 20.00 | 7.32 | 0.288 | SLB |
| 6 5/8 | 168.28 | 6.625 | 35.72 | 24.00 | 8.94 | 0.352 | SLB |
| 6 5/8 | 168.28 | 6.625 | 41.67 | 28.00 | 10.59 | 0.417 | - |
| 6 5/8 | 168.28 | 6.625 | 47.62 | 32.00 | 12.06 | 0.475 | - |
| 7 | 177.80 | 7.000 | 25.3 | 17.00 | 5.87 | 0.231 | - |
| 7 | 177.80 | 7.000 | 29.76 | 20.00 | 6.91 | 0.272 | S |
| 7 | 177.80 | 7.000 | 34.23 | 23.00 | 8.05 | 0.317 | SLB |
| 7 | 177.80 | 7.000 | 38.69 | 26.00 | 9.19 | 0.362 | SLB |
| 7 | 177.80 | 7.000 | 43.16 | 29.00 | 10.36 | 0.408 | - |
| 7 | 177.80 | 7.000 | 47.62 | 32.00 | 11.51 | 0.453 | - |
| 7 | 177.80 | 7.000 | 52.09 | 35.00 | 12.65 | 0.498 | - |
| 7 | 177.80 | 7.000 | 56.55 | 38.00 | 13.72 | 0.540 | - |
| 7 5/8 | 193.68 | 7.625 | 35.72 | 24.00 | 7.62 | 0.300 | - |
| 7 5/8 | 193.68 | 7.625 | 39.29 | 26.40 | 8.33 | 0.328 | SLB |
| 7 5/8 | 193.68 | 7.625 | 44.2 | 29.70 | 9.52 | 0.375 | - |
| 7 5/8 | 193.68 | 7.625 | 50.15 | 33.70 | 10.92 | 0.430 | - |
| 7 5/8 | 193.68 | 7.625 | 58.04 | 39.00 | 12.70 | 0.500 | - |
| 7 5/8 | 193.68 | 7.625 | 63.69 | 42.80 | 14.27 | 0.562 | - |
| 7 5/8 | 193.68 | 7.625 | 67.41 | 45.30 | 15.11 | 0.595 | - |
| 7 5/8 | 193.68 | 7.625 | 70.09 | 47.10 | 15.88 | 0.625 | - |
| 8 5/8 | 219.08 | 8.625 | 35.72 | 24.00 | 6.71 | 0.264 | S |
| 8 5/8 | 219.08 | 8.625 | 41.67 | 28.00 | 7.72 | 0.304 | - |
| 8 5/8 | 219.08 | 8.625 | 47.62 | 32.00 | 8.94 | 0.352 | SLB |
| 8 5/8 | 219.08 | 8.625 | 53.57 | 36.00 | 10.16 | 0.400 | SLB |
| 8 5/8 | 219.08 | 8.625 | 59.53 | 40.00 | 11.43 | 0.450 | - |
| 8 5/8 | 219.08 | 8.625 | 65.48 | 44.00 | 12.70 | 0.500 | - |
| 8 5/8 | 219.08 | 8.625 | 72.92 | 49.00 | 14.15 | 0.557 | - |
| 9 5/8 | 244.48 | 9.625 | 48.07 | 32.30 | 7.92 | 0.312 | - |
| 9 5/8 | 244.48 | 9.625 | 53.57 | 36.00 | 8.94 | 0.352 | SLB |
| 9 5/8 | 244.48 | 9.625 | 59.53 | 40.00 | 10.03 | 0.395 | SLB |
| 9 5/8 | 244.48 | 9.625 | 64.73 | 43.50 | 11.05 | 0.435 | - |
| 9 5/8 | 244.48 | 9.625 | 69.94 | 47.00 | 11.99 | 0.472 | - |
| 9 5/8 | 244.48 | 9.625 | 79.62 | 53.50 | 13.84 | 0.545 | - |
| 9 5/8 | 244.48 | 9.625 | 86.91 | 58.40 | 15.11 | 0.595 | - |
| 10 3/4 | 273.05 | 10.750 | 48.73 | 32.75 | 7.09 | 0.279 | - |
| 10 3/4 | 273.05 | 10.750 | 60.27 | 40.50 | 8.89 | 0.350 | SB |
| 10 3/4 | 273.05 | 10.750 | 67.71 | 45.50 | 10.16 | 0.400 | SB |
| 10 3/4 | 273.05 | 10.750 | 75.9 | 51.00 | 11.43 | 0.450 | SB |
| 10 3/4 | 273.05 | 10.750 | 82.59 | 55.50 | 12.57 | 0.495 | - |
| 10 3/4 | 273.05 | 10.750 | 90.33 | 60.70 | 13.84 | 0.545 | - |
| 10 3/4 | 273.05 | 10.750 | 97.77 | 65.70 | 15.11 | 0.595 | - |
| 11 3/4 | 298.45 | 11.750 | 62.5 | 42.00 | 8.46 | 0.333 | - |
| 11 3/4 | 298.45 | 11.750 | 69.94 | 47.00 | 9.53 | 0.375 | SB |
| 11 3/4 | 298.45 | 11.750 | 80.36 | 54.00 | 11.05 | 0.435 | SB |
| 11 3/4 | 298.45 | 11.750 | 89.29 | 60.00 | 12.42 | 0.489 | SB |
| 13 3/8 | 339.72 | 13.375 | 71.43 | 48.00 | 8.38 | 0.330 | - |
| 13 3/8 | 339.72 | 13.375 | 81.1 | 54.50 | 9.65 | 0.380 | SB |
| 13 3/8 | 339.72 | 13.375 | 90.78 | 61.00 | 10.92 | 0.430 | SB |
| 13 3/8 | 339.72 | 13.375 | 101.19 | 68.00 | 12.19 | 0.480 | SB |
| 13 3/8 | 339.72 | 13.375 | 107.15 | 72.00 | 13.06 | 0.514 | - |
| 16 | 406.40 | 16.000 | 93.67 | 65.00 | 9.53 | 0.375 | - |
| 16 | 406.40 | 16.000 | 111.61 | 75.00 | 11.13 | 0.438 | SB |
| 16 | 406.40 | 16.000 | 125.01 | 84.00 | 12.57 | 0.495 | SB |
| 18 5/8 | 473.08 | 18.625 | 130.21 | 87.50 | 11.05 | 0.435 | SB |
| 20 | 508.00 | 20.000 | 139.89 | 94.00 | 11.13 | 0.438 | SLB |
| 20 | 508.00 | 20.000 | 158.49 | 106.50 | 12.70 | 0.500 | SLB |
| 20 | 508.00 | 20.000 | 197.93 | 133.00 | 16.13 | 0.635 | SLB |
